-- RESISTORS
Name:RI85 Series(ROHS compliant)
Type:

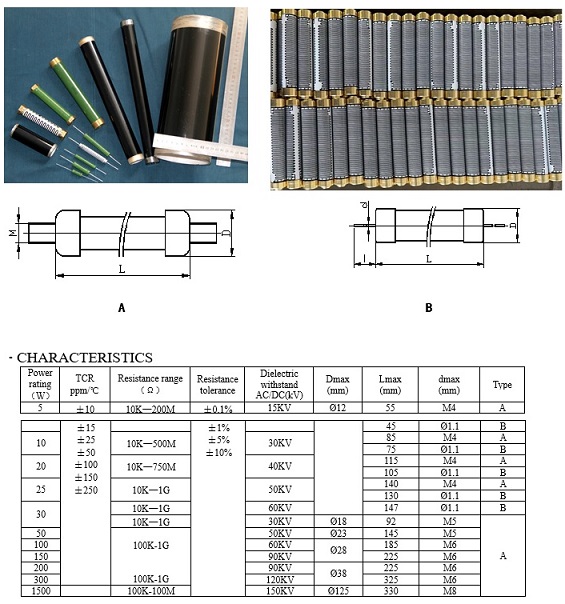

RI85 Series(ROHS compliant):Thick film non inductive high-power resistor

The RI85 series is thick film high-power high-voltage resistor with a non inductive design.
It has the characteristics of high voltage, high precision, low temperature coefficient,
low voltage coefficient, etc. Typical applications include high-voltage power supplies,
high-voltage system sampling and measurement, pulse circuits, voltage divider circuits,
medical instruments, automotive electronics, etc.
The RI85 series products accept customer order.

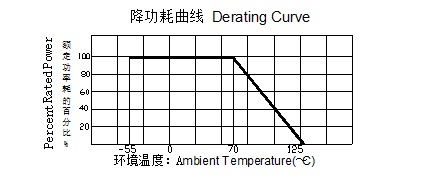

POWER REDUCTION CURVE

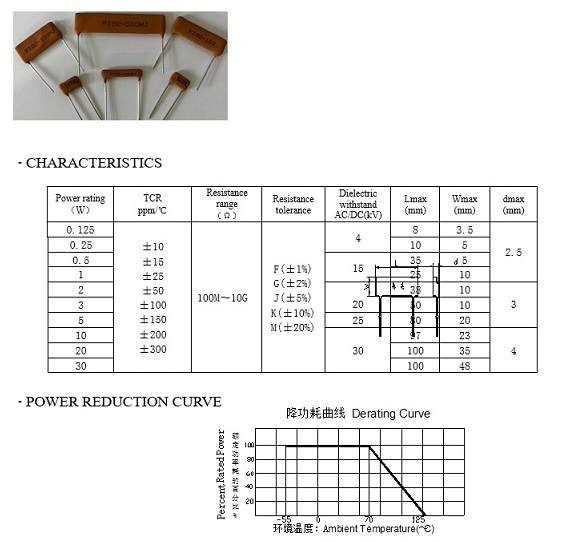

  RI82 Series(ROHS compliant):Thick film non inductive high-voltage chip resistor

The RI82 series is a thick film high-voltage chip high-power resistor with a non inductive design.
It has the characteristics of small size, high voltage, high precision, low temperature coefficient,
low voltage coefficient, etc. Typical applications include high-voltage system sampling and measurement, voltage divider circuits, medical instruments, automotive electronics, etc.
The RI82 series products accept customer order.
